Anti-fatigue mats

M5 Anti-Fatigue Tile

Black

£32.95

In stock · Prices include VAT.

Free UK delivery from £75 — otherwise £8.95

Choose size and add to basket

M5 Anti-Fatigue Tile — Black

In stock M5 Matting SKU MM-M5-AF-BK UK Made

Modular anti-fatigue tile from the M5 range. Interlocks to cover any workstation footprint and lifts out when your layout changes.

1Colour / finishBlack

2Size2 x 2 tiles

Width to cover (m)Depth to cover (m)

Rough is fine. We round up to whole 46 cm tiles.

3EdgingYellow ramped

Ramped edging stops trips at the mat edge and marks the area in high-visibility yellow.

4Heat (optional)None

Cold site? M-Heat is a separate 93 x 73 cm heated standing mat for the operator, 350 W of far-infrared heat. Up to five link on one socket. How it works

1.12 m wide x 1.12 m deep · 2 x 2 tilesAgainst a wall? Tap a side to leave its edging off.

Dispatched in 1–2 working days

Free M5 Matting sample — 1 working day

More than one workstation? Send your measurements and photos. We'll send a free layout and quote.

Additional colours — available on request

M5 Anti-Fatigue Tile has also been produced in the colours below. They are not stocked for online ordering, so there is no online price — tell us which colour you need and we will confirm availability, lead time and price.

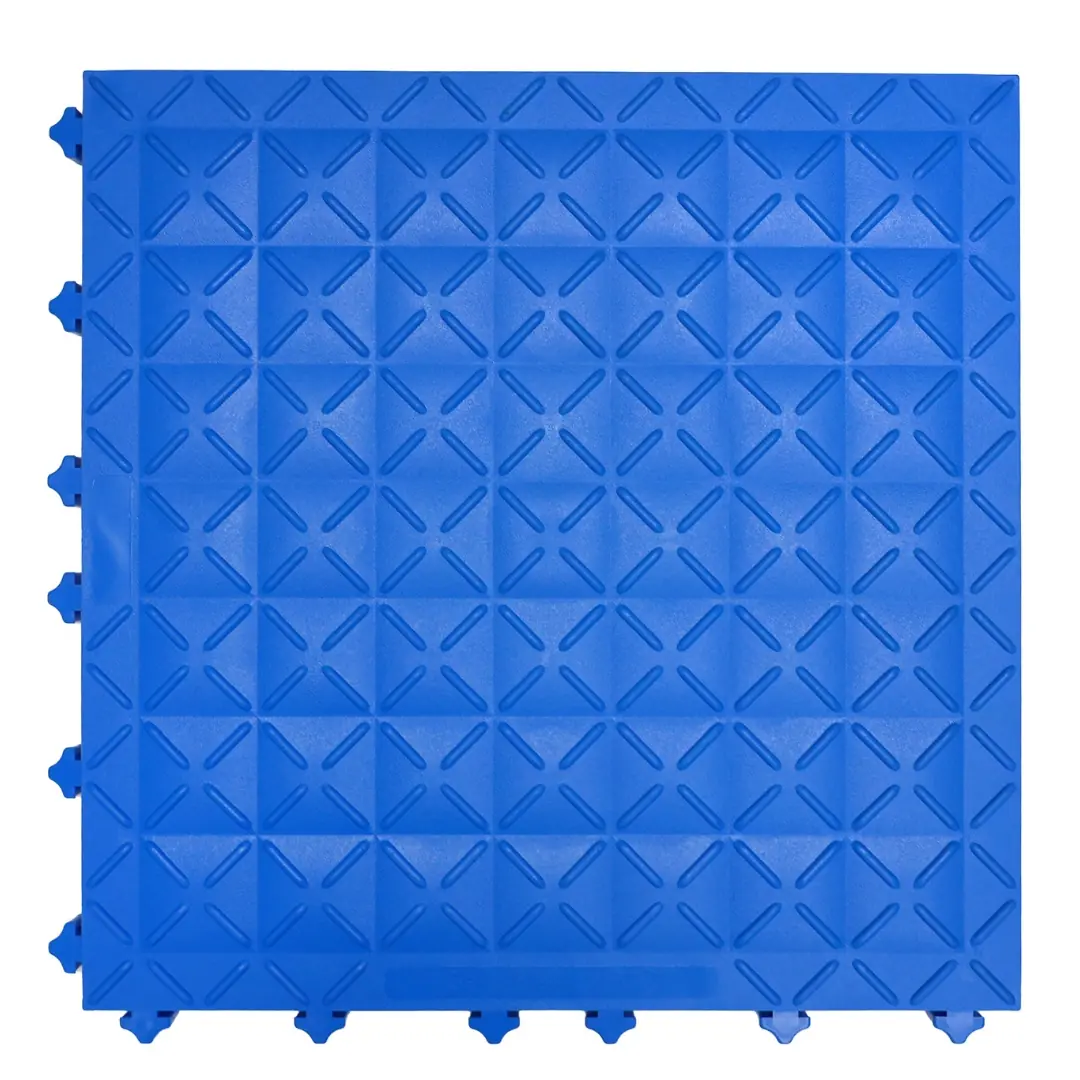

Blue
Available on request

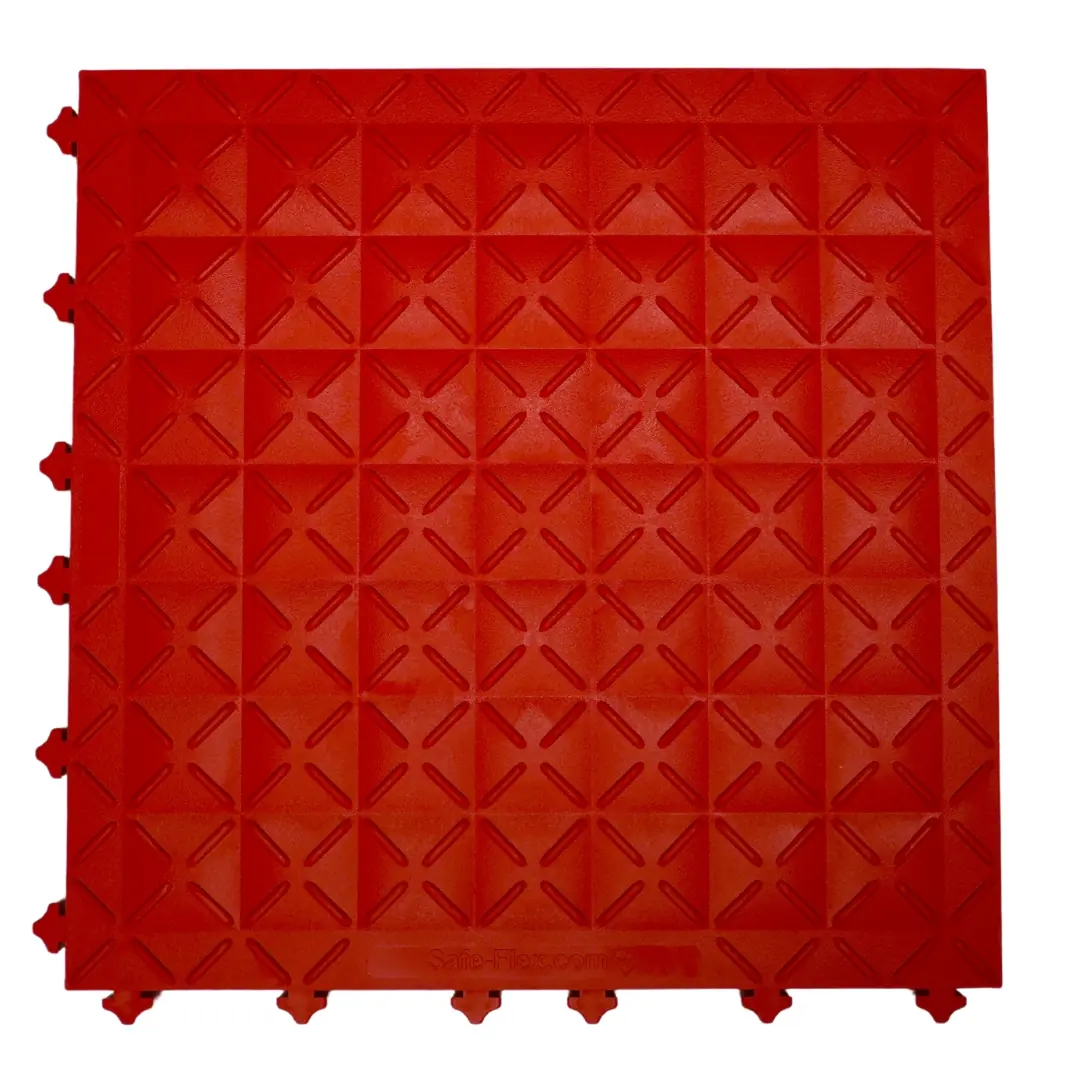

Red
Available on request

Ask about these colours

Free UK delivery from £75 — otherwise £8.95
Secure checkout — card payments processed by Stripe
Delivery calculated once per order and shown before payment
Price includes VAT. The price shown is the price you pay.
30-day returns guarantee on stocked items
UK business supplier — The Maximum Industrial Group Limited
Need help? 01332 480386 or email us

About this product

The M5 anti-fatigue tile is a modular interlocking tile for standing work areas — workstations, assembly lines and packing benches. Each tile measures 46 × 46 cm and is 2.5 cm thick.

Because the tiles interlock, you build matting to fit your floor rather than buying a fixed-size mat. A single tile covers about 0.21 m², so roughly 5 tiles make up a square metre. Tiles come in boxes of 10, and you can lift and reconfigure them when a line changes.

This group is available in black, grey and a smooth-top black finish, with custom colours made to order and priced by quote. Mixing colours is a simple way to mark walkways or zones within a matted area.

Matching M5 anti-fatigue edging and pre-sized workstation kits are available in the shop. Samples are available on request, and we can quote for larger areas — get in touch if you want help sizing a layout.

Where it’s used

Welding and hot-works bays. Classified Cfl-s2 for reaction to fire (EN 13501-1).
Assembly lines and production benches. Tiles build to the exact footprint of a line and lift out when it changes.
Machine shops and fabrication. A modular floor that can be relaid around machinery rather than replaced.
Packing and dispatch stations. Pre-sized workstation kits drop straight in, one box per station.

Specification

Dimensions
Size	46 × 46 cm
Thickness	2.5 cm
Weight per tile	2.5 kg
Supply
Quantity per box	10
Safety
Reaction to fire	Cfl-s2 (EN 13501-1)
Slip rating (DIN 51130)	R10
Dry slip resistance (EN 14041)	DS pass (along 0.52, across 0.50)
Chemical safety	Meets REACH (EC 1907/2006)
Procurement codes
UNSPSC	52101500 Rugs and mats
CPV (UK public tenders)	39532000-0 Mats

Buying through Coupa, Ariba or a public tender? What UNSPSC 52101500 covers, and the codes it is confused with.

Questions we get asked

Is M5 suitable for welding and hot-works bays?

Yes. M5 tiles are classified Cfl-s2 for reaction to fire under EN 13501-1, the European fire classification for floor coverings, tested to EN ISO 9239-1 and EN ISO 11925-2. That is why M5 is specified for welding, grinding and fabrication bays. Test reports are available on request.

How much floor does one tile cover?

A 46 × 46 cm tile covers about 0.21 m², so allow roughly 5 tiles per square metre. Tiles are supplied in boxes of 10.

Can I mix colours in one area?

Yes. Black, grey and smooth-top black tiles share the same interlocking format, so you can mix colours to mark walkways or zones within a matted area.

Can I order a custom colour?

Yes. Custom-colour tiles are made to order and priced by quote — our team confirms colour options, quantity and delivery.

Can I try a tile before ordering?

Samples are available on request. Matching M5 edging and pre-sized workstation kits are also available in the shop.
