Workstation kits
M5 ESD Anti-Static Workstation Kit
112x112x2.5cm
MM-M5-ESD-WK1
From £394.95
Dispatched in 1–2 working days
ESD matting
M5 ESD Anti-Static Tile
Black
£52.95In stock · Prices include VAT.
Free UK delivery from £75 — otherwise £8.95
Choose size and add to basket
Image 1 of 3

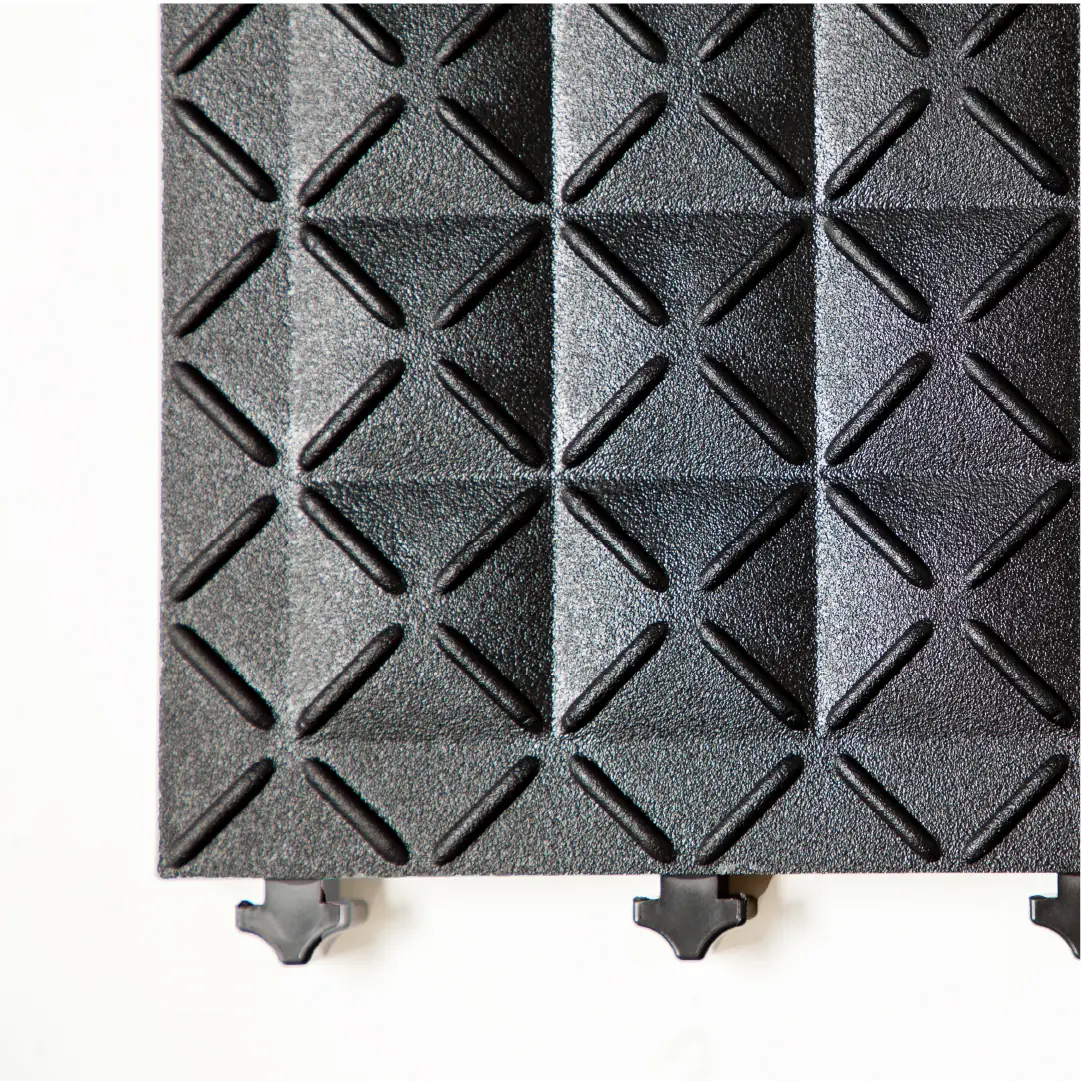

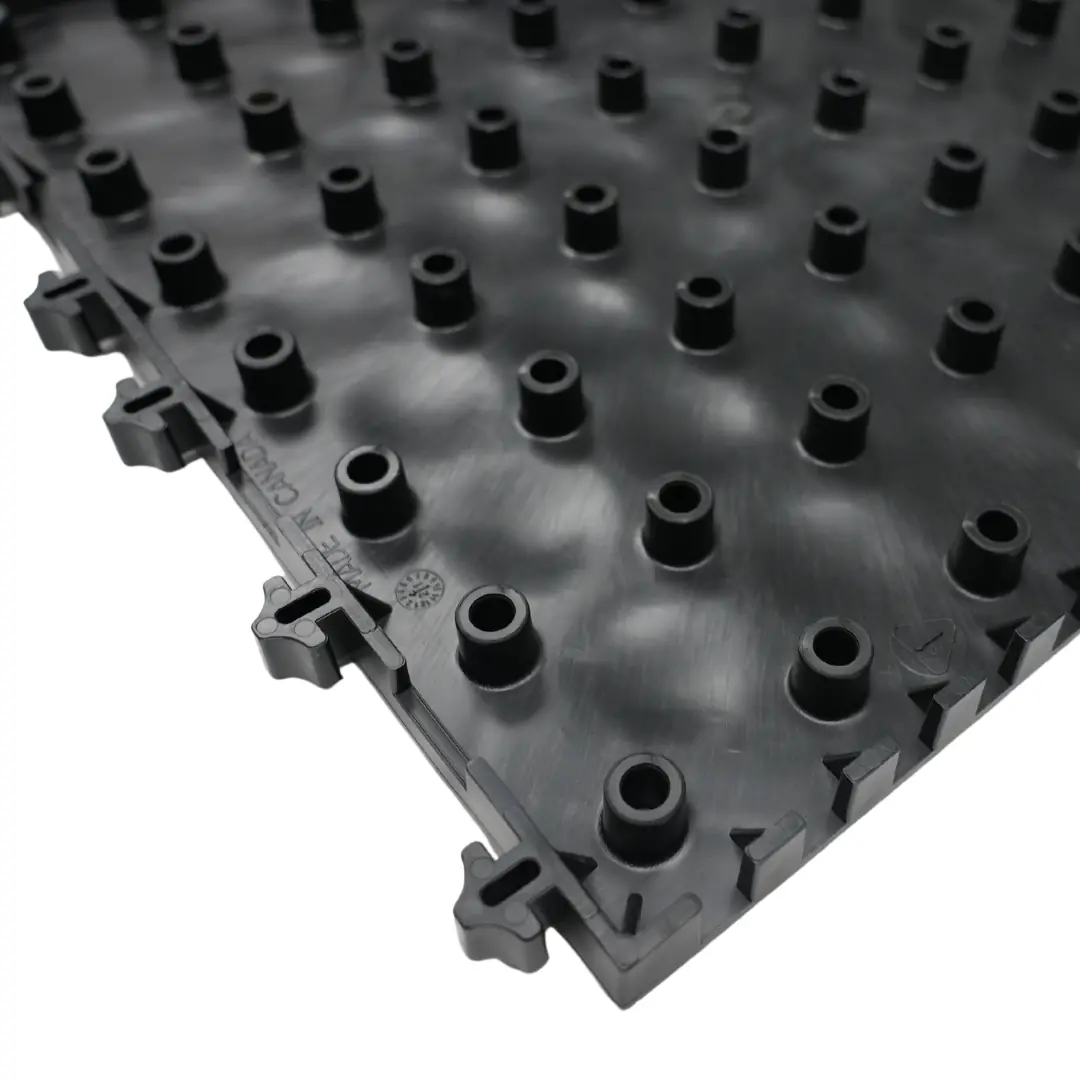

M5 ESD Anti-Static Tile
ESD anti-static tile from the M5 range. Interlocks to cover any footprint in static-sensitive work areas.
1Size2 x 2 tiles
Rough is fine. We round up to whole 46 cm tiles.
2EdgingYellow ramped
Ramped edging stops trips at the mat edge and marks the area in high-visibility yellow.
3Heat (optional)None
Cold site? M-Heat is a separate 93 x 73 cm heated standing mat for the operator, 350 W of far-infrared heat. Up to five link on one socket. How it works
Dispatched in 1–2 working days
Additional colours — available on request

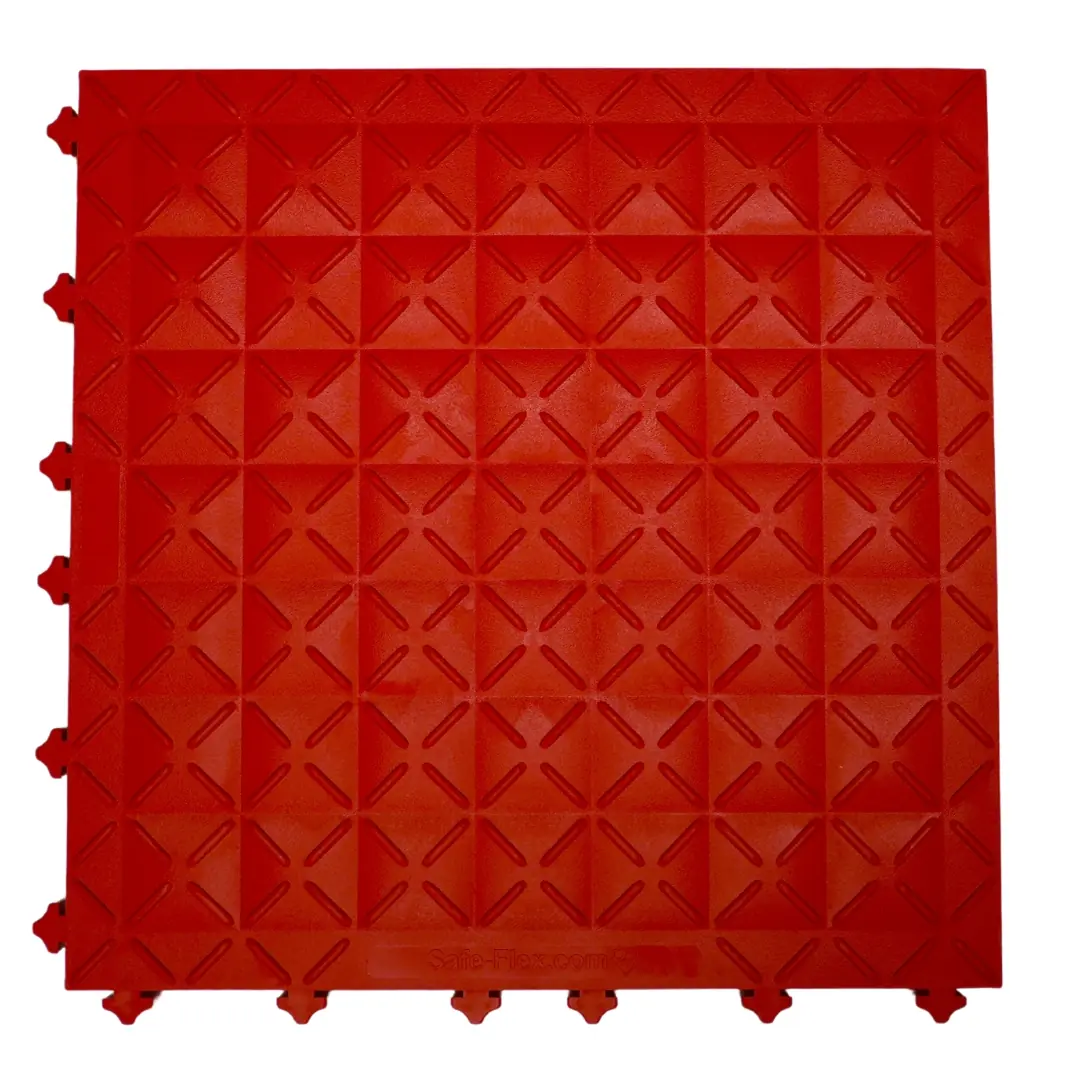

M5 ESD Anti-Static Tile has also been produced in the colours below. They are not stocked for online ordering, so there is no online price — tell us which colour you need and we will confirm availability, lead time and price.
RedAvailable on request
- Free UK delivery from £75 — otherwise £8.95
- Secure checkout — card payments processed by Stripe
- Delivery calculated once per order and shown before payment
- Price includes VAT. The price shown is the price you pay.
- 30-day returns guarantee on stocked items
- UK business supplier — The Maximum Industrial Group Limited
- Need help? 01332 480386 or email us
About this product
The M5 ESD anti-static tile is the ESD member of the M5 modular tile range, made for static-sensitive work areas such as electronics assembly benches. Each tile measures 46 × 46 cm and is 2.5 cm thick.
Tiles interlock, so you build matting to fit your floor rather than buying a fixed-size mat. A single tile covers about 0.21 m² — roughly 5 tiles per square metre — and tiles come in boxes of 10. Lift and reconfigure them when a line changes.
This tile is supplied in black, with a narrower 15 × 46 cm ESD tile available for finishing runs and filling gaps. Matching M5 ESD edging and a pre-sized ESD anti-static workstation kit are available in the shop. Samples are available on request and we can quote for larger areas.
Specification
| Dimensions | |
| Size | 46 × 46 cm |
| Thickness | 2.5 cm |
| Weight per tile | 2.5 kg |
| Supply | |
| Quantity per box | 10 |
| Safety | |
| Reaction to fire | Efl-s2 (EN 13501-1) |
| Dry slip resistance (EN 14041) | DS pass (along 0.45, across 0.46) |
| ESD | |
| Electrical resistance (EN 1081) | 1.3 × 10⁶ Ω, static dissipative |
| Procurement codes | |
| UNSPSC | 46182104 Anti static floor mats |
| CPV (UK public tenders) | 39532000-0 Mats |
Buying through Coupa, Ariba or a public tender? What UNSPSC 46182104 covers, and the codes it is confused with.
Questions we get asked
How much floor does one tile cover?
A 46 × 46 cm tile covers about 0.21 m², so allow roughly 5 tiles per square metre. Tiles are supplied in boxes of 10.
Is there a narrower ESD tile?
Yes. A 15 × 46 cm ESD tile is available for finishing runs and filling gaps in a tiled area.
Can I try a tile before ordering?
Samples are available on request. Matching M5 ESD edging and an ESD anti-static workstation kit are also available in the shop.
How it compares
| M5 ESD Anti-Static Tile from £52.95 | M3 – Blue Smooth from £22.99 | M4 – Grey Bubble from £38.99 | |
|---|---|---|---|
| Size | 46x46x2.5cm | 60 cm x 45 cm | 60 cm x 91 cm |
| Family | ESD Anti-Static Safety Flooring | — | — |
| Options | 1 | 12 | 10 |
