How to Ground an ESD Mat: A Setup Guide for UK Electronics Workstations

Connecting an ESD mat to earth sounds simple. In practice, a significant proportion of working EPAs fail their first resistance test, not because the mats are wrong, but because the grounding path was overlooked, improvised, or wired to a painted earth point that does nothing useful. Here is how to do it correctly.

What grounding actually does

Static charge accumulates on people, clothing, trolleys, anything in motion. In electronics assembly, a discharge as low as 100V can destroy a sensitive component without generating a visible spark or a felt shock. The mat’s job is not to block static but to provide a controlled path to earth, slow enough to avoid a sudden surge, fast enough to drain accumulated charge before it reaches a PCB, MOSFET, or bare connector pin.

IEC 61340-5-1 defines the resistance window for a compliant EPA: 10⁶ Ω at the lower bound (to prevent a rapid-discharge event) and 10⁹ Ω at the upper bound (to ensure charge flows rather than sits). Maximum Matting’s M3 bench mat and M4 ESD floor mat are manufactured to this range. But the mat’s resistance is only half the equation. Without a verified, low-resistance path to earth, a dissipative mat surface is just a layer of blue rubber going nowhere.

The four components of a grounded workstation

A single-operator EPA at an electronics assembly bench needs four elements, and they work as a system:

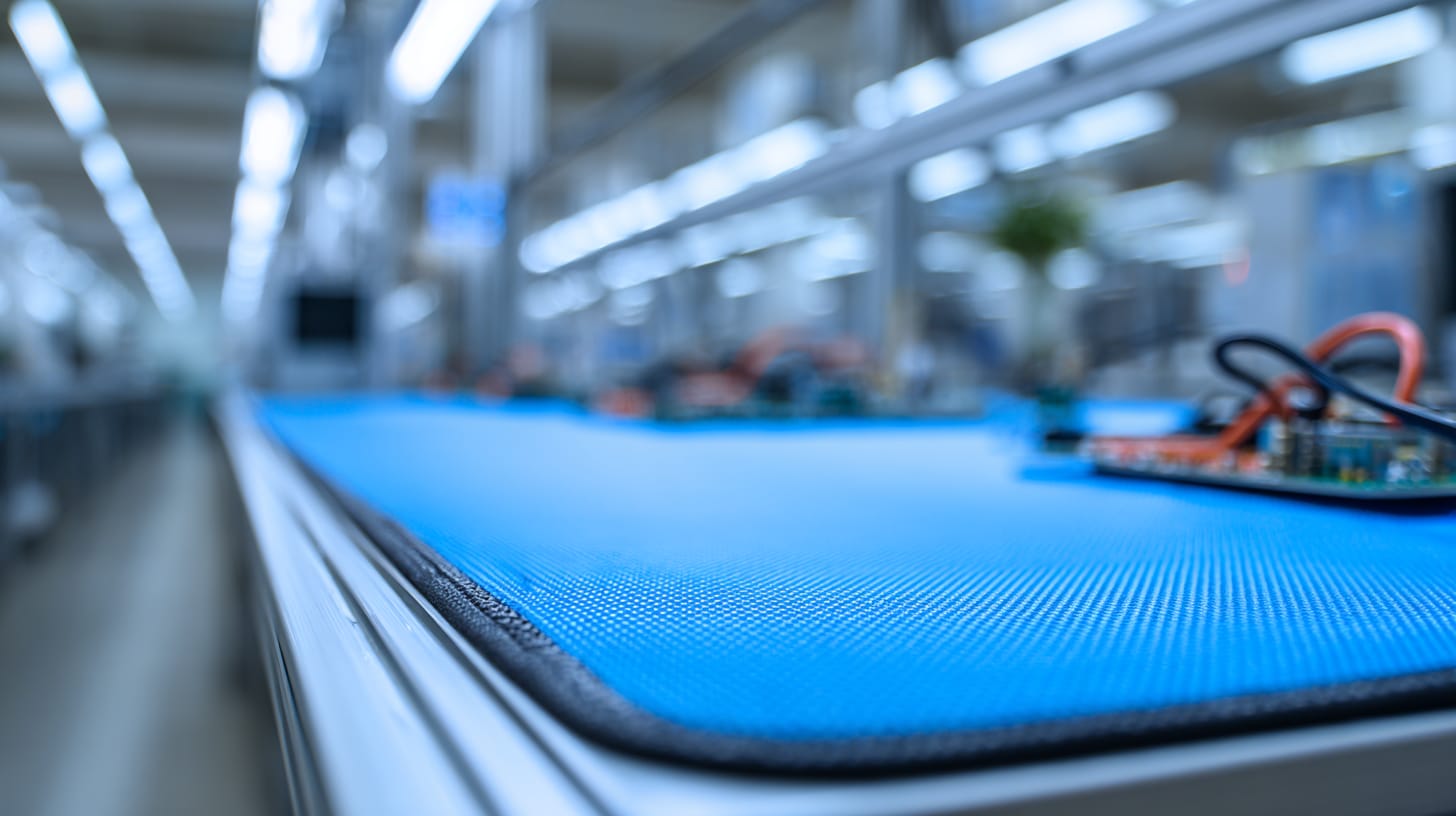

M3 ESD bench mat, a blue dissipative bench mat with a surface resistance of 10⁶–10⁹ Ω. It sits on the workbench and handles charge from components, tools, and anything placed on the surface. Available from £23, and supplied as part of grounding kits.

M4 ESD floor mat, combines the same ESD specification with anti-fatigue comfort. Operators standing through long shifts need the ergonomic support; the ESD layer ensures charge from footwear drains to earth rather than accumulating until they touch a component. From £39.

Grounding cable with earth bonding plug, runs from the mat’s press-stud connector to a bare-metal earth point. Accessories start at £6. Common-point ground bars are available for connecting multiple elements, bench mat, wrist strap, ioniser, to a single earth terminal.

Wrist strap and/or heel grounder, the operator’s body is part of the circuit. A wrist strap provides continuous contact at the bench; a heel grounder (worn with dissipative footwear) closes the circuit when the operator is standing on the M4. Both are available as accessories from £6.

These four elements create a triangle: bench mat to earth, floor mat to earth, operator to earth. Remove any one leg and the system fails, often invisibly, until a component is damaged.

Setting up a bench mat station

Step 1, Position the M3 mat on a clean, dry surface. The press-stud connection point sits at one corner; keep it accessible rather than buried under monitors or enclosures.

Step 2, Connect the grounding cable. Snap the cable onto the press-stud and route it to the nearest verified earth point. The connection must be to bare metal, strip paint or corrosion if needed, or use a dedicated terminal on a bonded earth bus. Avoid connecting to mains sockets via plug adapters unless the earth bonding plug is rated and tested for that application.

Step 3, Verify the resistance path. Use a surface resistance tester to take readings across the mat surface (point-to-point) and from the mat surface to earth (point-to-earth). Both should read within 10⁶–10⁹ Ω. A reading above 10⁹ Ω typically means a broken cable, a corroded snap connector, or a mat that has aged beyond its effective resistance range. A reading below 10⁶ Ω, rarer, but possible with some highly conductive surfaces, creates a near-direct discharge path that can generate its own damage events.

Step 4, Set up the wrist strap. Fit it to a bare wrist, plug the coiled cord into the common-point ground or the mat’s secondary press-stud, and run it through a pass/fail tester. This takes ten seconds. Operators should test at the start of every sitting session, failed or untested wrist straps are the most common finding when EPA records are reviewed on-site.

Setting up a floor mat station

Install the M4 on a clean, level hard floor. In areas where trolleys or chairs cross the mat regularly, use bevelled edge connectors to eliminate curled edges and remove trip hazard risk. A tripped operator is a separate compliance issue, and a valid one.

Connect the M4’s grounding cable to the same earth rail or bonding point as the bench mat wherever the layout allows. A shared common-point ground bar is cleaner to test and audit than two cables running to two separate points.

One detail that causes more failures than any equipment fault: footwear. If operators wear standard rubber-soled boots, a heel grounder achieves nothing, the footwear insulates the circuit before the grounder can close it. This is the most common reason an EPA passes a paperwork review and fails a physical walk-round. Check footwear compliance before signing off the installation, and record it in the EPA documentation.

Testing and keeping records

Daily testing at shift-start should cover wrist strap function, footwear or heel grounder continuity, and a visual check on cables and mat surfaces for damage or lifted edges.

Quarterly testing should include:

• Point-to-point resistance across each mat surface
• Point-to-earth resistance from each mat to its bonding point
• Earth continuity at the bonding terminal itself

Log the date, reading, and mat identifier for each test. Under IEC 61340-5-1 and ANSI/ESD S20.20, test records form part of the required EPA documentation. They also create a useful trend: when a mat starts drifting toward the 10⁹ Ω upper limit across successive quarterly tests, that is an early indicator to schedule replacement before a compliance gap opens at the worst possible moment.

For a broader view of how M3 and M4 performed in structured IEC 61340 testing, the Best ESD Matting UK 2026 review covers the results in detail. If you are still working out whether dissipative matting, conductive matting, or anti-static matting applies to your situation, the ESD vs anti-static mat specification guide sets out the differences clearly before you commit to a purchase.

Common mistakes that break the circuit

Painted or corroded earth points. The resistance tester will show it immediately as a high or open reading. Bare metal to bare metal is the only reliable connection, strip paint if needed and document the bonding point.

Floating operators. Mats correctly grounded, wrist strap untested, rubber-soled boots on the floor mat. The equipment passes; the operator is the gap. Build strap and footwear testing into start-of-shift SOPs, not into occasional audits.

Insulative materials on the bench mat. Cardboard boxes, plastic carrier bags, and polystyrene packaging are charge-generating materials. Placing them on the M3 does not discharge them, it puts a charge source directly on your protected surface. Keep insulative packaging off the bench mat; use shielded bags for component storage.

Daisy-chaining mats. Running the ground cable from one mat to another mat, rather than from each mat directly to an earth point, leaves one mat floating. Every mat needs its own bonded path to earth.

Cleaning without re-testing. Some cleaning agents leave a surface residue that raises resistance temporarily. After any mat clean, run a point-to-earth check before returning to production. The matting hygiene guide covers compatible cleaning approaches that will not compromise the dissipative layer.

Multi-bay EPA layouts

A single-workstation setup is straightforward to self-specify: one M3, one M4, one grounding cable, one wrist strap kit, and a resistance tester. Multi-bay layouts are a different undertaking. Multiple bench stations, continuous M4 floor runs across several assembly lines, a coordinated grounding scheme, and consistent documentation across every operator position, the complexity grows quickly, and the cost of an error scales with the value of the components being assembled.

For these projects, a free site visit is the sensible starting point. We measure the area, confirm grounding requirements and earth bonding options, and recommend the right surfaces and formats before any stock is committed. You come away with a single reference document, layout, specification, grounding scheme, that compliance teams and auditors can work from directly.

For single-station orders, build a basket online. A sales rep reviews every order before it processes, so if the cable specification or kit combination does not suit what you have described, it gets corrected before anything ships.
