Electrical Safety Matting to BS EN 61111: A Specification Guide for Switchroom and Substation Applications

A maintenance engineer opens the switchroom door, steps onto a bare concrete floor, and begins work on a live panel rated at several kilovolts. The matting that should be underfoot is either absent, past its inspection date, or specified to the wrong class for the voltage present. None of those scenarios are unusual, and all of them carry serious consequences.

For facilities managers and safety officers responsible for switchrooms, substations, and high-voltage enclosures, electrical safety matting is not a discretionary purchase. It is a control measure that sits within a hierarchy of protection. When the specification is wrong, the mat offers false assurance. When it is correct and current, it forms a critical barrier between a worker and a potentially fatal arc or shock event. This guide sets out exactly how to specify, classify, and maintain electrical insulating matting in line with BS EN 61111, so that procurement decisions are grounded in the standard rather than guesswork.

What BS EN 61111 Actually Requires and Why the Class System Matters

BS EN 61111 is the European standard for electrical insulating matting used for working on or near live electrical installations. It superseded earlier national standards and aligns with the IEC 61111 framework, giving it recognition across UK and European electrical engineering practice.

The standard divides matting into six classes based on the maximum working voltage the mat can withstand:

• Class 00: rated for use up to 500 V AC
• Class 0: rated for use up to 1,000 V AC
• Class 1: rated for use up to 7,500 V AC
• Class 2: rated for use up to 17,000 V AC
• Class 3: rated for use up to 26,500 V AC
• Class 4: rated for use up to 36,000 V AC

Each class carries a corresponding proof test voltage that the mat must survive during manufacture and periodic re-testing. The class you specify must match or exceed the maximum voltage present at the point of work, not the nominal system voltage. This distinction matters because transient overvoltages and system fault conditions can briefly exceed nominal ratings.

BS EN 61111 also specifies minimum thickness for each class, because dielectric strength is directly related to material depth. A Class 2 mat, for example, carries a minimum thickness requirement that a Class 0 mat does not need to meet. Specifying by class alone without confirming the physical thickness of the mat you are purchasing is a common error that our team encounters during site surveys.

The standard further distinguishes between Type A mats, which have no special properties beyond electrical insulation, and mats with additional designations for resistance to ozone, flame, acid, oil, or low temperatures. In a switchroom adjacent to a transformer bay or a battery room, the relevant additional properties are not cosmetic choices. They determine whether the mat retains its integrity in the actual environment where it is installed.

Selecting the Right Compound and Construction for Your Environment

Electrical insulating mats to BS EN 61111 are manufactured from rubber compounds, and the compound specification is where many procurement decisions go wrong. Not all rubber performs equally under electrical stress, and the operating environment places additional demands on the material beyond its dielectric properties.

Natural rubber offers good baseline electrical insulation but degrades in the presence of ozone, which is generated by high-voltage switchgear. A switchroom housing air-insulated busbars or older oil-filled switchgear will have elevated ozone levels, and a mat without ozone-resistant compound will crack and lose dielectric integrity over time. The BS EN 61111 designation for ozone resistance is the letter C in the mat type suffix. Specifying Type AC or BC matting in those environments is not optional.

For substations where oil leaks from transformers or cable joints are a realistic possibility, oil-resistant compound is equally important. Oil contamination of a standard rubber mat does not immediately destroy its insulating properties, but it accelerates surface degradation and creates a slip hazard that compounds the electrical risk. The BS EN 61111 designation for oil resistance is the letter B.

Our manufacturing process uses 100% recycled rubber compound throughout our electrical safety matting range. This is a point worth addressing directly for procurement teams who sometimes assume that recycled content implies compromised electrical performance. The dielectric properties of a rubber compound are determined by its molecular structure and the absence of conductive contaminants, not by whether the raw material originated from virgin or recycled stock. Our compound is tested to the same BS EN 61111 proof voltages as any virgin-rubber equivalent, and the recycled content gives our clients a measurable contribution toward their environmental and procurement sustainability targets without any trade-off in protection.

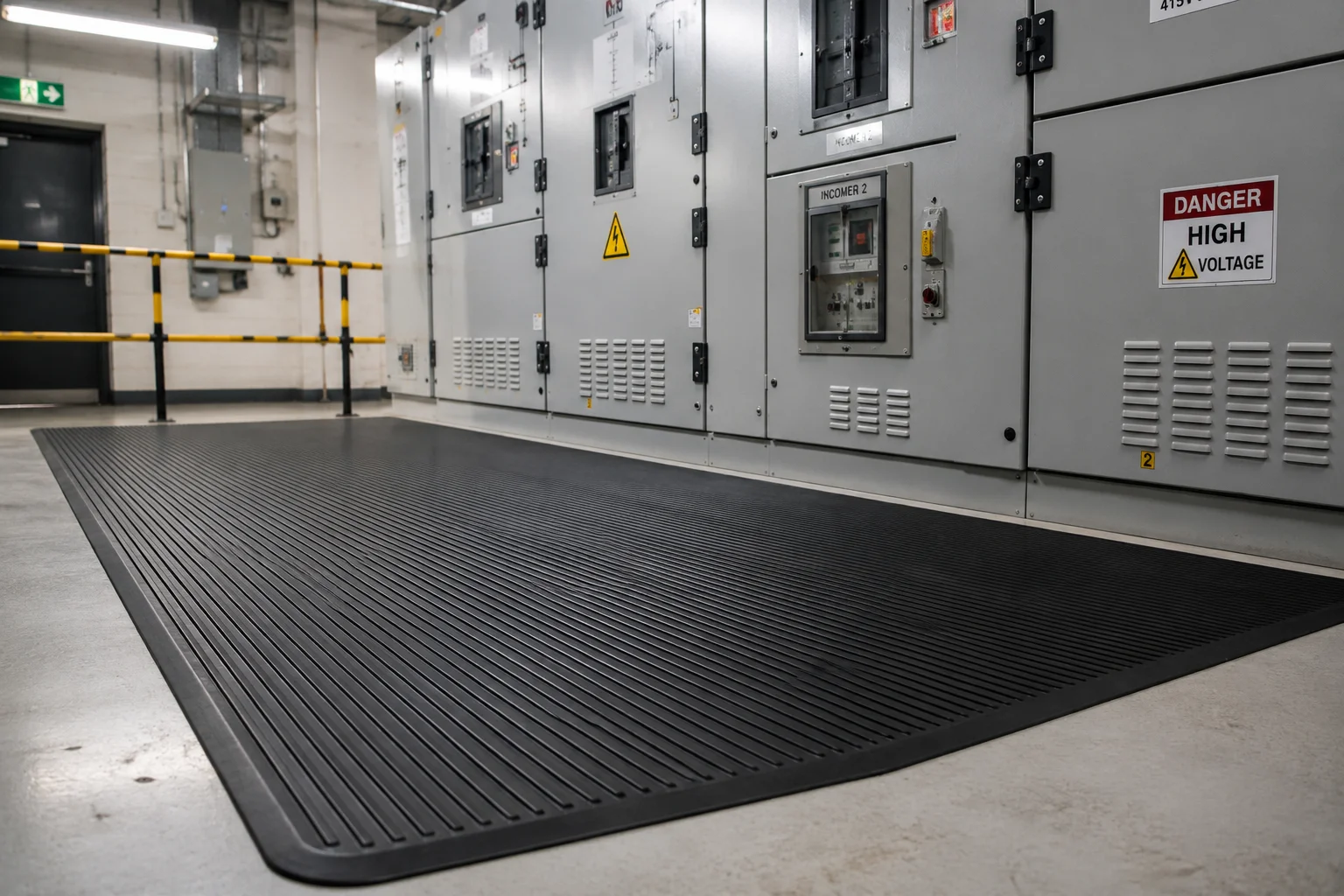

On construction, electrical safety mats are typically produced as flat sheets or with a ribbed or diamond-plate surface profile. The surface profile affects grip and drainage of incidental moisture. In a switchroom where condensation is possible, a ribbed surface reduces the contact area between a wet boot sole and the mat surface, which both improves footing and reduces the risk of surface tracking if moisture is present. Flat-surface mats are easier to clean and inspect for surface damage, which is an advantage in environments where regular visual inspection is part of the maintenance regime.

Thickness is a specification variable that procurement teams should state explicitly in their purchase order rather than leaving to the supplier’s discretion. Class 0 matting starts at a minimum thickness that is considerably less than Class 2 or above. Ordering by class designation without specifying thickness leaves room for a supplier to deliver the minimum permissible thickness, which may be adequate for the standard but may not provide the working life or underfoot stability that the application demands.

Installation, Marking, and the Inspection Cycle You Cannot Ignore

A correctly specified mat installed incorrectly or left uninspected provides diminishing protection over time. BS EN 61111 addresses marking requirements: every compliant mat must carry permanent markings showing the class, the standard reference, the manufacturer’s identification, and the year of manufacture. These markings allow you to verify at a glance that the mat in situ matches the specification on your asset register and that it is within its serviceable life.

The HSE’s guidance on electrical safety, including the Electricity at Work Regulations 1989, places a duty on employers to maintain electrical protective equipment in a condition fit for use. For insulating mats, this means a documented inspection and re-test cycle. BS EN 61111 does not prescribe a fixed re-test interval in calendar terms, because the appropriate interval depends on the frequency of use, the harshness of the environment, and whether any damage is visible. What it does require is that mats are re-tested to the proof voltage for their class before being returned to service after any period of doubt, and that they are withdrawn from service if they show cuts, punctures, surface tracking, or significant surface contamination that cannot be removed.

In practice, our clients in manufacturing and utilities typically operate on an annual electrical re-test cycle for mats in continuously occupied switchrooms, with a visual inspection logged each time the room is entered for maintenance work. That combination of scheduled electrical testing and documented visual inspection satisfies the due-diligence requirement under the Electricity at Work Regulations and provides a defensible audit trail.

Installation details matter too. Electrical safety mats should cover the full working area in front of the equipment being accessed, with no gaps that would require a worker to step off the mat to reach a panel or isolator. Overlapping mat edges create a trip hazard and a potential point of mechanical damage. Where two mats must meet, they should butt together cleanly rather than overlap, and the joint should be noted in the installation record so that it receives particular attention during visual inspection.

Storage of spare and reserve mats requires the same attention as installed mats. Mats stored rolled or folded under mechanical stress, in direct sunlight, or in contact with oil or solvents will degrade before they are put into service. Flat storage in a clean, dry location away from UV exposure and chemical contact preserves the dielectric properties until the mat is needed.

Integrating Electrical Safety Matting into a Broader Factory Floor Safety Programme

Switchrooms and substations do not exist in isolation. They sit within manufacturing facilities, logistics hubs, food production sites, and electronics assembly operations where factory floor safety matting serves multiple functions simultaneously. The electrical safety matting in your HV switchroom is one element of a wider matting specification that may also include anti-fatigue matting at assembly stations, drainage matting in wash-down areas, and ESD matting at sensitive electronics workstations.

For facilities managers responsible for all of those environments, consolidating the specification and supply of industrial matting through a single supplier with demonstrable technical knowledge of each application reduces the administrative burden and ensures that the right product reaches the right location. A drainage mat installed in a switchroom because it was the only matting in the stores is not a theoretical risk scenario. Our team has encountered exactly that situation during site assessments.

When specifying ESD matting for electronics assembly areas alongside electrical safety matting for switchrooms, the distinction in function is absolute and should be explicit in your asset register. ESD matting is designed to provide a controlled, measurable path to earth for static charge, typically with a surface resistance in the range of 10 to the power of 6 to 10 to the power of 9 ohms. Electrical insulating matting is designed to prevent current flow entirely. Installing ESD matting in a switchroom because it carries an electrical-sounding description would remove the protection the switchroom requires. The two products are not interchangeable, and a compliant asset register should record the standard, class, and test date for each mat in each location.

As a British manufactured matting supplier, we hold stock of electrical safety matting across the BS EN 61111 class range and can supply cut-to-size sheets for non-standard switchroom dimensions without the lead times associated with importing from continental European manufacturers. For facilities teams managing planned maintenance outages where the switchroom mat must be replaced before the outage window closes, domestic manufacture and stock availability is a practical operational advantage, not simply a procurement preference.

Your Practical Starting Point This Week

The most useful action you can take in the next working day is to locate your current switchroom and substation mats, read the markings on each one, and cross-reference the class against the maximum working voltage present in each enclosure. If the markings are illegible, the mat has no visible manufacture date, or the class is lower than the voltage demands, that mat should be removed from service and replaced before the next maintenance entry.

At the same time, check whether your mats carry any additional type designations for ozone or oil resistance and whether those designations match the actual environment. A Class 2 mat with no ozone resistance designation installed in a room with air-insulated switchgear is a degradation risk that will not be visible until the compound cracks.

Once you have that inventory, you have a clear specification to work from: class, thickness, surface profile, and any additional type properties required. Bring that specification to us and we will confirm the correct product, advise on cut sizes, and provide documentation to support your compliance records.

Send your switchroom dimensions and voltage details to our team at Maximum Matting and we will return a compliant specification and lead time within one working day.
